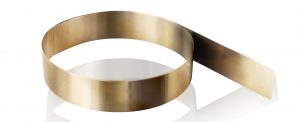

GSL Doctor Blade

GSL Doctor Blade

  1. High-tech doctor blade for gravure and flexographic printing.
  2. Contact pressure is reduced to minimum.
  3. Significantly less streaks and ink adherence to blade is reduced.
  4. Suitable for printing barcodes and structured texts in tobacco industry.
  5. Longer service life compared to GS model.
  • Model: GSL
  • Material: Carbon Steel
  • Printing Speed:  ≤500m/min
  • Thickness: 0.152 - 0.203mm
  • Standard Size: 10, 30, 40, 50, 60mm
  • Tensile Strength: 2100Mpa
  • Hardness: 850 – 900HV
  • Straightness: Max 0.15mm/1m
  • Edge Profile: Lamella
  • Suggested Application: Gravure and Flexographic Printing
